Debian 11 上使用 Minicube 部署 Kubernetes 集群

我这边采用的是Hetzner的独立服务器配置，VPS也能部署

1
 CPU 型号          : Intel(R) Core(TM) i7-7700 CPU @ 3.60GHz
2
 CPU 核心数        : 1 物理核心, 4 总核心, 8 总线程数
3
 CPU 频率          : 4089.603 MHz
4
 CPU 缓存          : L1: 256.00 KB / L2: 1.00 MB / L3: 8.00 MB
5
 硬盘空间          : 678.17 GiB / 936.60 GiB
6
 启动盘路径        : /dev/md1
7
 内存              : 24.31 GiB / 62.59 GiB
8
 Swap              : [ no swap partition or swap file detected ]
9
 系统在线时间      : 14 days, 19 hour 25 min
10
 负载              : 1.42, 1.76, 2.01
11
 系统              : Debian GNU/Linux 11 (bullseye) (x86_64)
12
 AES-NI指令集      : ✔ Enabled
13
 VM-x/AMD-V支持    : ✔ Enabled
14
 架构              : x86_64 (64 Bit)
15
 内核              : 5.10.0-23-amd64
16
 TCP加速方式       : bbr
17
 虚拟化架构        : Dedicated
18
 NAT类型           : 开放型
19
 IPV4 ASN          : AS24940 Hetzner Online GmbH
20
 IPV4 位置         : Berlin / Berlin / DE
21
 IPV6 ASN          : AS24940 Hetzner Online GmbH
22
 IPV6 位置         : Nuremberg / DE-BY

环境准备#
2 CPUs or more
2GB of free memory
20GB of free disk space
Internet connection
Container or virtual machine manager, such as: Docker, QEMU, Hyperkit, Hyper-V, KVM, Parallels, Podman, VirtualBox, or VMware Fusion/Workstation

安装 Kubectl#

1
依次执行
2
curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
3
chmod +x ./kubectl
4
sudo mv kubectl /usr/local/bin/
5

6

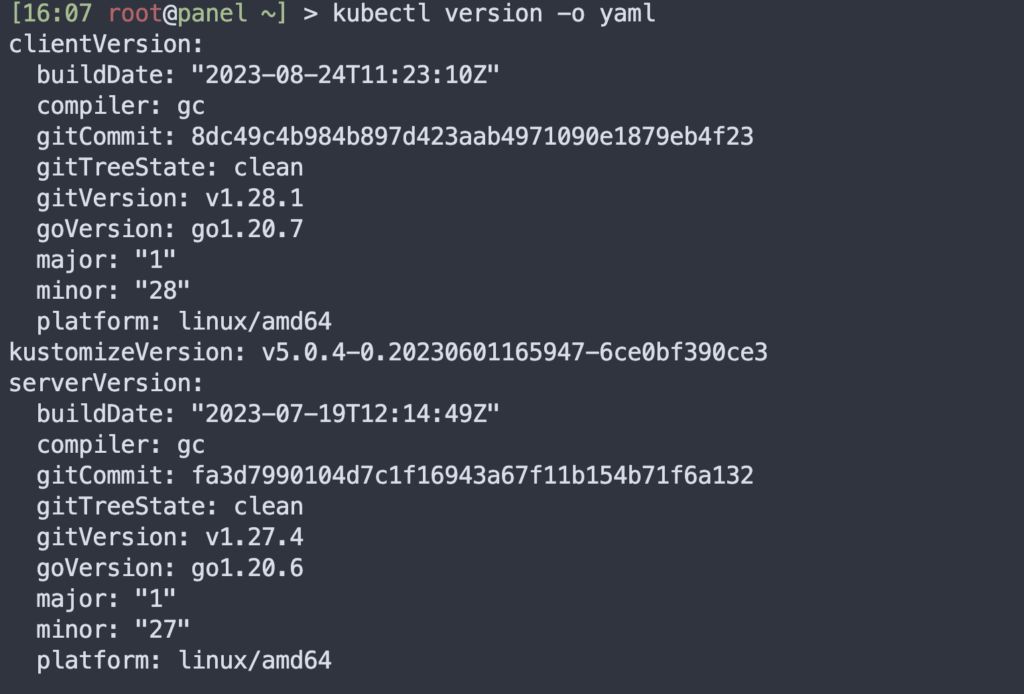

### 检查Kubectl是否安装成功
7
kubectl version -o yaml

安装Minikube#

1
依次执行
2
curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-darwin-amd64
3
sudo install minikube-darwin-amd64 /usr/local/bin/minikube
4

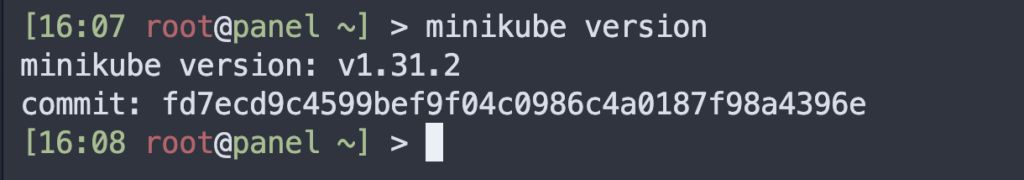

检查是否安装成功
5
minikube version

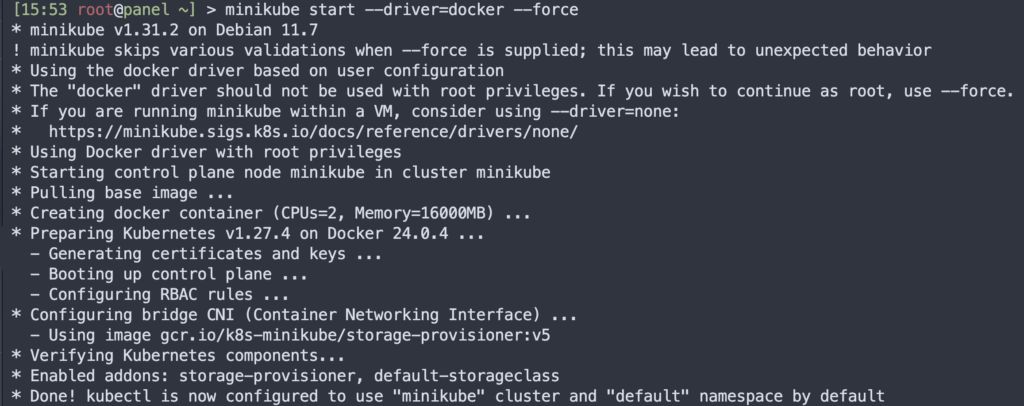

启动Minikube#

1
我这边采用的是Root权限下启动需要执行的，如果直接minikube启动，会有权限警告错误
2
minikube start --driver=docker --force

错误整理：#

Root登录权限下直接通过minikube start 启动集群

1
minikube v1.31.2 on Debian 11.7
2
Automatically selected the docker driver. Other choices: ssh, none
3
The "docker" driver should not be used with root privileges. If you wish to continue as root, use --force.
4
If you are running minikube within a VM, consider using --driver=none:
5
https://minikube.sigs.k8s.io/docs/reference/drivers/none/
6
X Exiting due to DRV_AS_ROOT: The "docker" driver should not be used with root privileges.

解决方案：1.更换用户 2.以 minikube start —driver=docker —force 命令启动集群

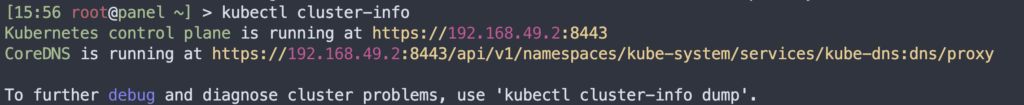

检查集群状态#

1
kubectl cluster-info

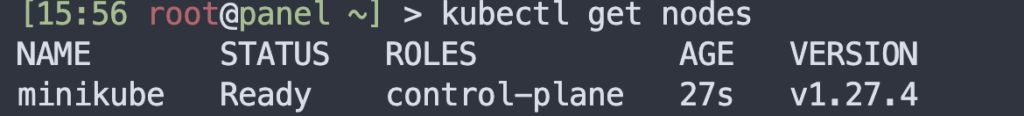

检查正在运行的节点#

1
kubectl get nodes

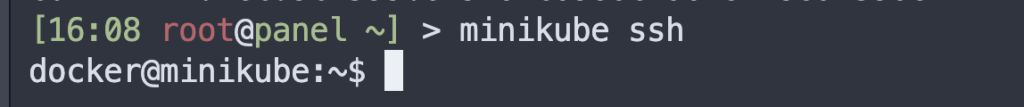

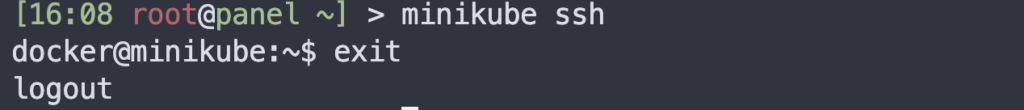

访问Minikube 容器#

1
minikube ssh

退出容器Shell

1
exit

停止和删除 Kubernetes 集群#

1
minikube stop
2
minikube delete

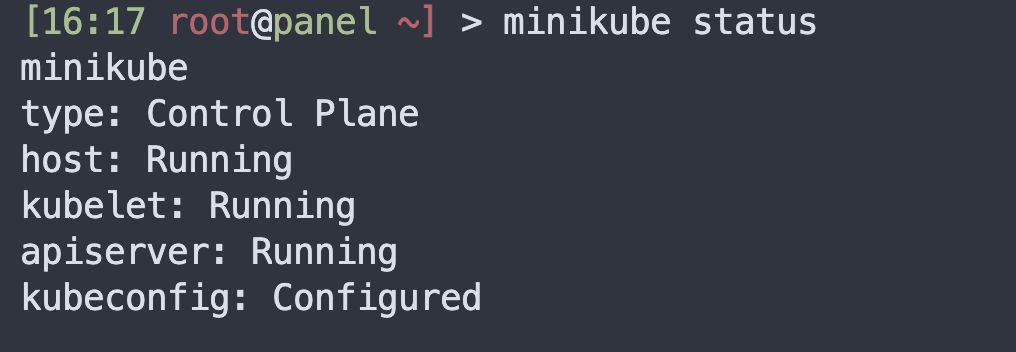

检查Minikube状态#

1
minikube status

访问Minikube Kubernetes Dashboard#

默认情況下，Minikube 提供了一個 Web 端，可用来管理你的集群。

你可以使用以下命令列出所有 minikube 插件：minikube addons list

你可以看到以下输出：

1
[15:56 root@panel ~] > minikube addons list
2
|-----------------------------|----------|--------------|--------------------------------|
3
|         ADDON NAME          | PROFILE  |    STATUS    |           MAINTAINER           |
4
|-----------------------------|----------|--------------|--------------------------------|
5
| ambassador                  | minikube | disabled     | 3rd party (Ambassador)         |
6
| auto-pause                  | minikube | disabled     | minikube                       |
7
| cloud-spanner               | minikube | disabled     | Google                         |
8
| csi-hostpath-driver         | minikube | disabled     | Kubernetes                     |
9
| dashboard                   | minikube | disabled     | Kubernetes                     |
10
| default-storageclass        | minikube | enabled ✅   | Kubernetes                     |
11
| efk                         | minikube | disabled     | 3rd party (Elastic)            |
12
| freshpod                    | minikube | disabled     | Google                         |
13
| gcp-auth                    | minikube | disabled     | Google                         |
14
| gvisor                      | minikube | disabled     | minikube                       |
15
| headlamp                    | minikube | disabled     | 3rd party (kinvolk.io)         |
16
| helm-tiller                 | minikube | disabled     | 3rd party (Helm)               |
17
| inaccel                     | minikube | disabled     | 3rd party (InAccel             |
18
|                             |          |              | [info@inaccel.com])            |
19
| ingress                     | minikube | disabled     | Kubernetes                     |
20
| ingress-dns                 | minikube | disabled     | minikube                       |
21
| inspektor-gadget            | minikube | disabled     | 3rd party                      |
22
|                             |          |              | (inspektor-gadget.io)          |
23
| istio                       | minikube | disabled     | 3rd party (Istio)              |
24
| istio-provisioner           | minikube | disabled     | 3rd party (Istio)              |
25
| kong                        | minikube | disabled     | 3rd party (Kong HQ)            |
26
| kubevirt                    | minikube | disabled     | 3rd party (KubeVirt)           |
27
| logviewer                   | minikube | disabled     | 3rd party (unknown)            |
28
| metallb                     | minikube | disabled     | 3rd party (MetalLB)            |
29
| metrics-server              | minikube | disabled     | Kubernetes                     |
30
| nvidia-driver-installer     | minikube | disabled     | 3rd party (Nvidia)             |
31
| nvidia-gpu-device-plugin    | minikube | disabled     | 3rd party (Nvidia)             |
32
| olm                         | minikube | disabled     | 3rd party (Operator Framework) |
33
| pod-security-policy         | minikube | disabled     | 3rd party (unknown)            |
34
| portainer                   | minikube | disabled     | 3rd party (Portainer.io)       |
35
| registry                    | minikube | disabled     | minikube                       |
36
| registry-aliases            | minikube | disabled     | 3rd party (unknown)            |
37
| registry-creds              | minikube | disabled     | 3rd party (UPMC Enterprises)   |
38
| storage-provisioner         | minikube | enabled ✅   | minikube                       |
39
| storage-provisioner-gluster | minikube | disabled     | 3rd party (Gluster)            |
40
| volumesnapshots             | minikube | disabled     | Kubernetes                     |
41
|-----------------------------|----------|--------------|--------------------------------|

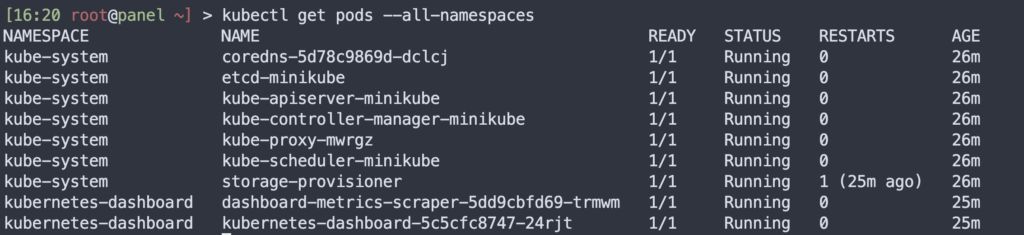

接下來，使用以下命令列出集群中目前运行的所有容器镜像：

1
kubectl get pods --all-namespaces

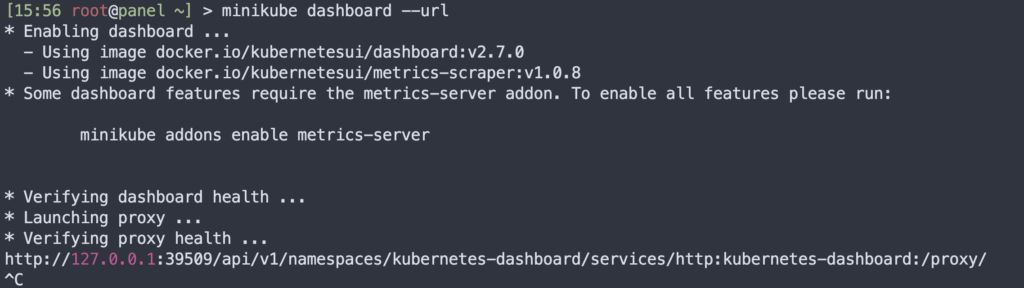

现在，韵行以下命令获取 Kubernetes 面板的 URL：

1
minikube dashboard --url

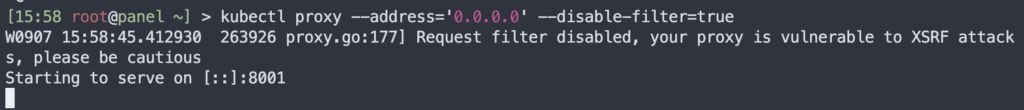

此時，Minikube 仪表盘已安装并运行在服务器上的 39509 端口上。但是，目前只能从本地地址访问它。如果要从外部访问它，需要运行以下命令。

1
kubectl proxy --address='0.0.0.0' --disable-filter=true

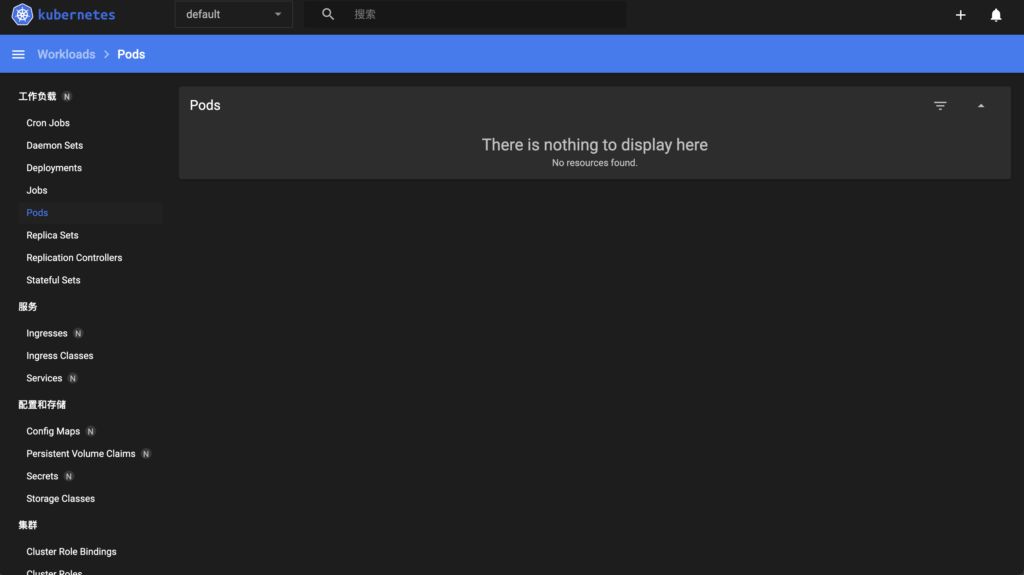

現在，打開你的Chrome並输入 URL http://your-server-ip:8001/api/v1/namespaces/kubernetes-dashboard/services/http:kubernetes-dashboard:/proxy/。将被重定向到 Kubernetes 仪表盘，如下頁所示：
