Fiberstate 洛杉矶万兆 AMD 9950x 测评

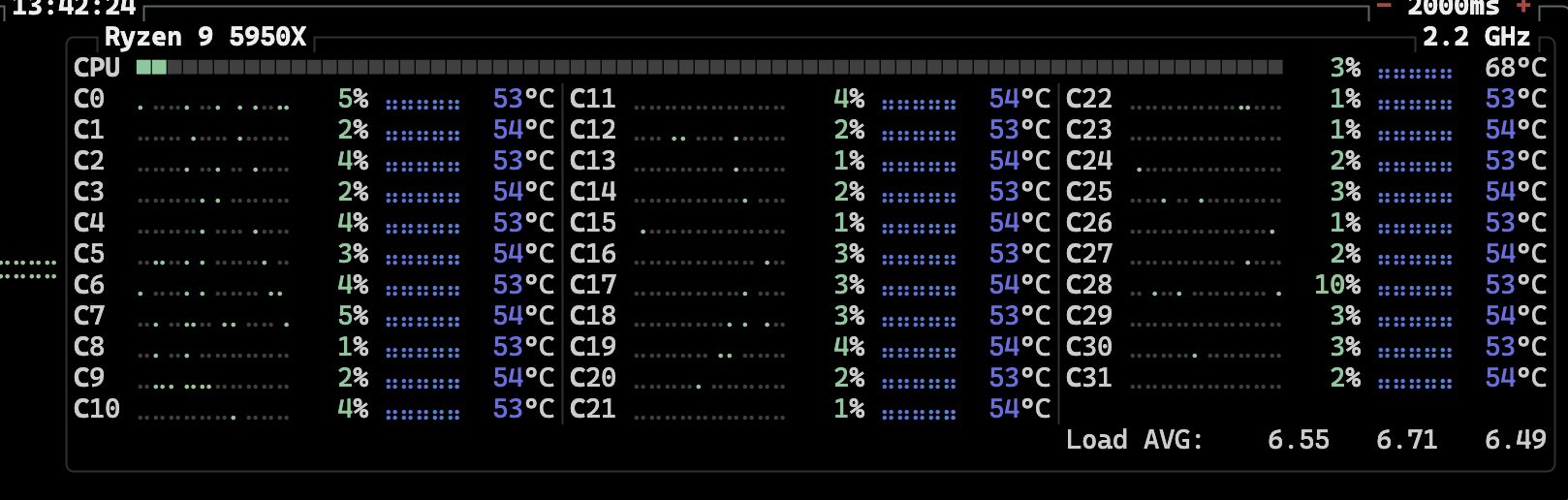

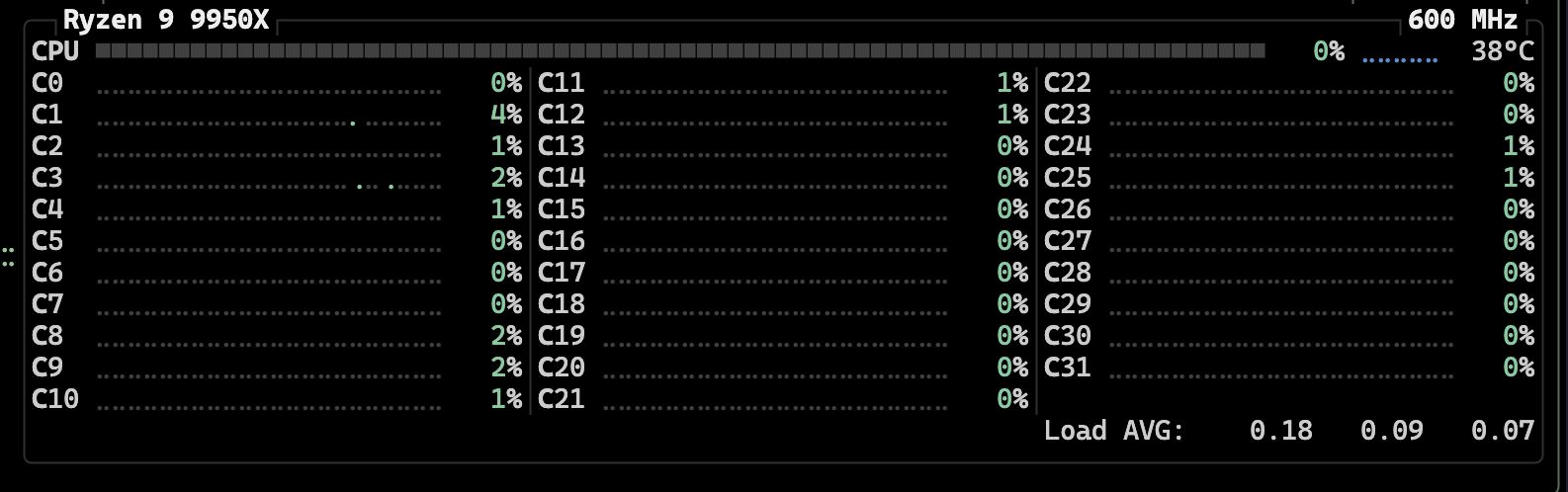

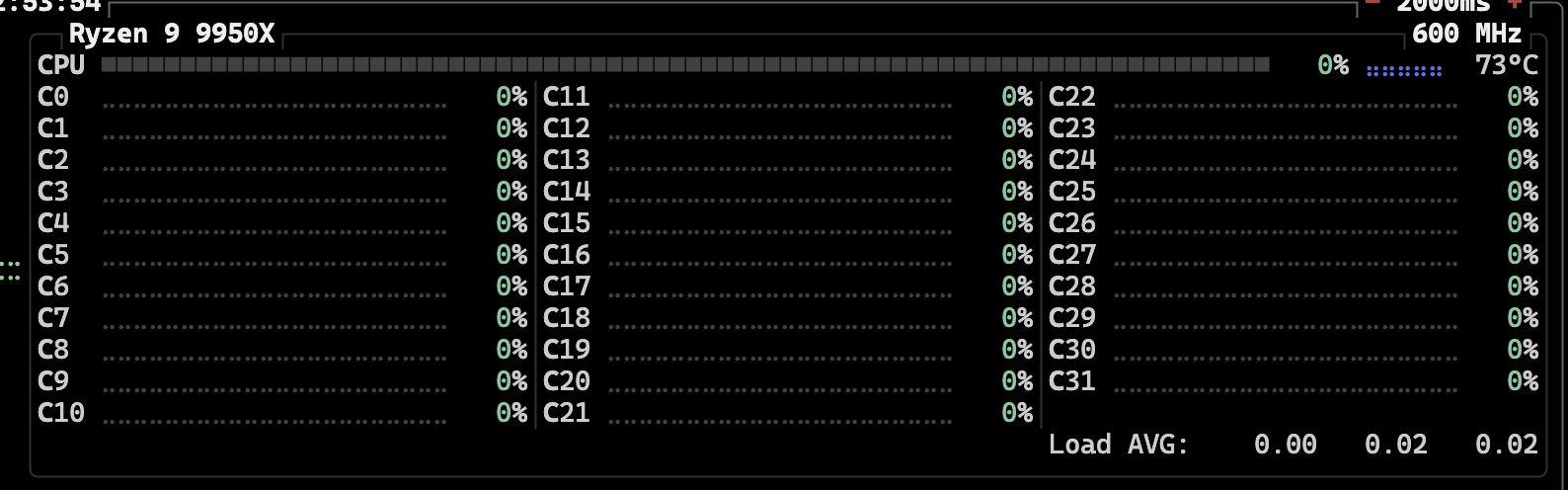

[admonition title=“警告” color=“red”]由于温度过高，散热不佳，我已退款，见文末的温度对比，此外这款机器商家明确说了无法提供其他散热方式[/admonition]

We have the server running in the exact specification and cooling Supermicro designed it to run with in this chassis. There is nothing additional we can add to it to aid in cooling.

Fiberstate 是最近两年在 LowEndTalk 兴起的商家，以极高性价比的杜甫而闻名，目前经营盐城湖洛杉矶两个地区（2025年下班会拓展纽约，打通欧洲），其中盐城湖是直营机房，rehouse改建的，机房驻场是可以的，工单一叫，回复之后马上几分钟就开始处理了，工作速度快，也不拖沓的。洛杉矶应该是租用的别的机柜，且洛杉矶本次促销属于预配置，无法修改，洛杉矶只能4TB单盘。盐湖城可以自定义，但是洛杉矶网络明显优于盐湖城，看个人需要。

PS:需要注意的是，本次促销的机器使用了

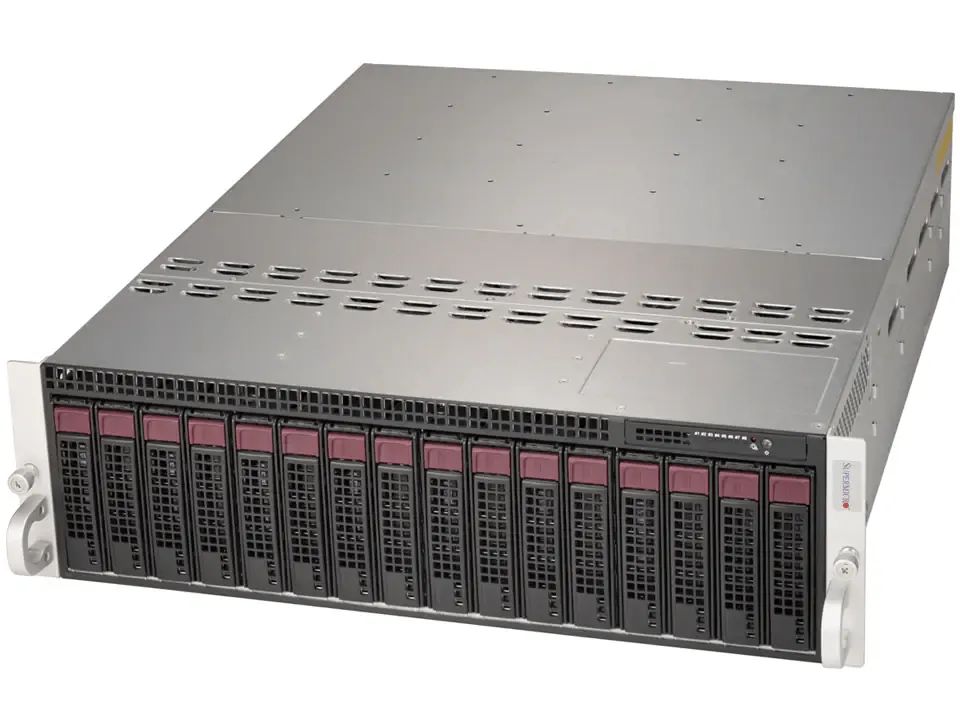

**Supermicro H13SRD-F 主板，MicroCloud A+ Server AS -3015MR-H8TNR 机箱，此为8子星机箱，目前看存在无法跑满9950X的情况（目前观察最高只能5.5Ghz）。**目前可以确认的是存在散热缺陷，CPU温度非常高。

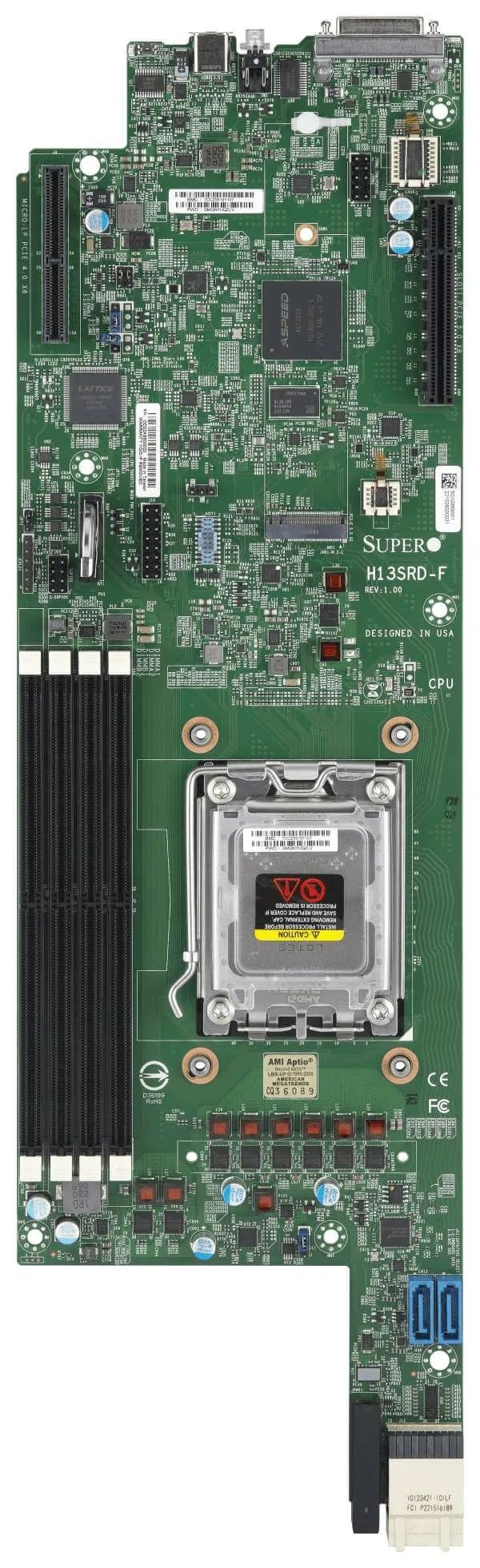

Supermicro H13SRD-F主板规格，M.2插槽为PCIe 5.0 x2，正好与Samsung 990 EVO Plus的设计匹配，因此链路宽度为x2是正常现象，Samsung 990 EVO Plus这款SSD是三星的高性能NVMe固态硬盘，采用PCIe 4.0 x4和PCIe 5.0 x2混合设计。它在PCIe 4.0接口下以4条通道运行，在PCIe 5.0接口下则以2条通道运行。

Looking Glass#

Salt Lake City Looking Glass: https://slc.lg.fiberstate.com/
Los Angeles Looking Glass: https://lax.lg.fiberstate.com/

配置#

CPU ： AMD Ryzen 9 9950X
MEM ：4 x 32 GB DDR5-3600MT/s CT32G48C40U5.C16A1
DISK ：4001GB Samsung SSD 990 EVO Plus 4TB + 62GB USB DISK 3.0
Network : 2 x Intel 82599ES 10-Gigabit SFI/SFP+
MOTHERBOARD : Supermicro H13SRD-F v1.00

1
System Information
2

3
  PROCESSOR:              AMD Ryzen 9 9950X 16-Core @ 8.18GHz
4
    Core Count:           16
5
    Thread Count:         32
6
    Extensions:           SSE 4.2
7
                          + AVX512_VNNI
8
                          + AVX512CD
9
                          + AVX2
10
                          + AVX
11
                          + RDRAND
12
                          + FSGSBASE
13
    Cache Size:           64 MB
14
    Microcode:            0xb404023
15
    Core Family:          Family 26 Model 68
16
    Scaling Driver:       amd-pstate-epp performance (EPP: performance)
17

18
  GRAPHICS:               ASPEED 2GB
19
    Screen:               1024x768
20

21
  MOTHERBOARD:            Supermicro H13SRD-F v1.00
22
    BIOS Version:         1.4
23
    Chipset:              AMD Device 14d8
24
    Network:              2 x Intel 82599ES 10-Gigabit SFI/SFP+
25

26
  MEMORY:                 4 x 32 GB DDR5-3600MT/s
27

28
  DISK:                   4001GB Samsung SSD 990 EVO Plus 4TB + 62GB USB DISK 3.0
29
    File-System:          ext4
30
    Mount Options:        errors=remount-ro relatime rw
31
    Disk Scheduler:       NONE
32
    Disk Details:         Block Size: 4096
33

34
  OPERATING SYSTEM:       Debian GNU/Linux 12
35
    Kernel:               6.8.4-2-pve (x86_64)
36
    Compiler:             GCC 12.2.0
37
    Security:             gather_data_sampling: Not affected
38
                          + itlb_multihit: Not affected
39
                          + l1tf: Not affected
40
                          + mds: Not affected
41
                          + meltdown: Not affected
42
                          + mmio_stale_data: Not affected
43
                          + reg_file_data_sampling: Not affected
44
                          + retbleed: Not affected
45
                          + spec_rstack_overflow: Not affected
46
                          + spec_store_bypass: Mitigation of SSB disabled via prctl
47
                          + spectre_v1: Mitigation of usercopy/swapgs barriers and __user pointer sanitization
48
                          + spectre_v2: Mitigation of Enhanced / Automatic IBRS IBPB: conditional STIBP: always-on RSB filling PBRSB-eIBRS: Not affected
49
                          + srbds: Not affected
50
                          + tsx_async_abort: Not affected

测评#

CPU#

1
root@pve:~# lscpu
2
Architecture:             x86_64
3
  CPU op-mode(s):         32-bit, 64-bit
4
  Address sizes:          48 bits physical, 48 bits virtual
5
  Byte Order:             Little Endian
6
CPU(s):                   32
7
  On-line CPU(s) list:    0-31
8
Vendor ID:                AuthenticAMD
9
  BIOS Vendor ID:         Advanced Micro Devices, Inc.
10
  Model name:             AMD Ryzen 9 9950X 16-Core Processor
11
    BIOS Model name:      AMD Ryzen 9 9950X 16-Core Processor             Unknown CPU @ 4.3GHz
12
    BIOS CPU family:      107
13
    CPU family:           26
14
    Model:                68
15
    Thread(s) per core:   2
16
    Core(s) per socket:   16
17
    Socket(s):            1
18
    Stepping:             0
19
    CPU(s) scaling MHz:   64%
20
    CPU max MHz:          8180.0000
21
    CPU min MHz:          600.0000
22
    BogoMIPS:             8583.31
23
    Flags:                fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm constant_tsc rep_good a
24
                          md_lbr_v2 nopl nonstop_tsc cpuid extd_apicid aperfmperf rapl pni pclmulqdq monitor ssse3 fma cx16 sse4_1 sse4_2 movbe popcnt aes xsave avx f16c rdrand lahf_lm cmp_legacy
25
                           svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs skinit wdt tce topoext perfctr_core perfctr_nb bpext perfctr_llc mwaitx cpb cat_l3 cdp_l3 hw_pstate
26
                          ssbd mba perfmon_v2 ibrs ibpb stibp ibrs_enhanced vmmcall fsgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid cqm rdt_a avx512f avx512dq rdseed adx smap avx512ifma clfl
27
                          ushopt clwb avx512cd sha_ni avx512bw avx512vl xsaveopt xsavec xgetbv1 xsaves cqm_llc cqm_occup_llc cqm_mbm_total cqm_mbm_local user_shstk avx_vnni avx512_bf16 clzero irp
28
                          erf xsaveerptr rdpru wbnoinvd cppc arat npt lbrv svm_lock nrip_save tsc_scale vmcb_clean flushbyasid decodeassists pausefilter pfthreshold avic v_vmsave_vmload vgif x2av
29
                          ic v_spec_ctrl vnmi avx512vbmi umip pku ospke avx512_vbmi2 gfni vaes vpclmulqdq avx512_vnni avx512_bitalg avx512_vpopcntdq rdpid bus_lock_detect movdiri movdir64b overfl
30
                          ow_recov succor smca fsrm avx512_vp2intersect flush_l1d
31
Virtualization features:
32
  Virtualization:         AMD-V
33
Caches (sum of all):
34
  L1d:                    768 KiB (16 instances)
35
  L1i:                    512 KiB (16 instances)
36
  L2:                     16 MiB (16 instances)
37
  L3:                     64 MiB (2 instances)
38
NUMA:
39
  NUMA node(s):           1
40
  NUMA node0 CPU(s):      0-31
41
Vulnerabilities:
42
  Gather data sampling:   Not affected
43
  Itlb multihit:          Not affected
44
  L1tf:                   Not affected
45
  Mds:                    Not affected
46
  Meltdown:               Not affected
47
  Mmio stale data:        Not affected
48
  Reg file data sampling: Not affected
49
  Retbleed:               Not affected
50
  Spec rstack overflow:   Not affected
51
  Spec store bypass:      Mitigation; Speculative Store Bypass disabled via prctl
52
  Spectre v1:             Mitigation; usercopy/swapgs barriers and __user pointer sanitization
53
  Spectre v2:             Mitigation; Enhanced / Automatic IBRS, IBPB conditional, STIBP always-on, RSB filling, PBRSB-eIBRS Not affected
54
  Srbds:                  Not affected
55
  Tsx async abort:        Not affected
56
root@pve:~#

Yabs#

1
Basic System Information:
2
---------------------------------
3
Uptime     : 0 days, 0 hours, 25 minutes
4
Processor  : AMD Ryzen 9 9950X 16-Core Processor
5
CPU cores  : 32 @ 5229.091 MHz
6
AES-NI     : ✔ Enabled
7
VM-x/AMD-V : ✔ Enabled
8
RAM        : 123.4 GiB
9
Swap       : 8.0 GiB
10
Disk       : 94.9 GiB
11
Distro     : Debian GNU/Linux 12 (bookworm)
12
Kernel     : 6.8.4-2-pve
13
VM Type    : NONE
14
IPv4/IPv6  : ✔ Online / ❌ Offline
15

16
IPv4 Network Information:
17
---------------------------------
18
ISP        : FiberState, LLC
19
ASN        : AS26042 FiberState, LLC
20
Host       : Fiberstate LLC
21
Location   : Draper, Utah (UT)
22
Country    : United States
23

24
fio Disk Speed Tests (Mixed R/W 50/50) (Partition /dev/mapper/pve-root):
25
---------------------------------
26
Block Size | 4k            (IOPS) | 64k           (IOPS)
27
  ------ | --- ---- | ---- ----
28
Read       | 1.64 GB/s   (411.9k) | 1.16 GB/s    (18.2k)
29
Write      | 1.65 GB/s   (413.0k) | 1.17 GB/s    (18.3k)
30
Total      | 3.30 GB/s   (825.0k) | 2.34 GB/s    (36.6k)
31
           |                      |
32
Block Size | 512k          (IOPS) | 1m            (IOPS)
33
  ------ | --- ---- | ---- ----
34
Read       | 1.49 GB/s     (2.9k) | 1.51 GB/s     (1.4k)
35
Write      | 1.57 GB/s     (3.0k) | 1.61 GB/s     (1.5k)
36
Total      | 3.06 GB/s     (5.9k) | 3.12 GB/s     (3.0k)
37

38
iperf3 Network Speed Tests (IPv4):
39
---------------------------------
40
Provider        | Location (Link)           | Send Speed      | Recv Speed      | Ping
41
----- | ----- | ---- | ---- | ----
42
Clouvider       | London, UK (10G)          | 1.33 Gbits/sec  | 1.72 Gbits/sec  | 126 ms
43
Eranium         | Amsterdam, NL (100G)      | 1.16 Gbits/sec  | 1.73 Gbits/sec  | 128 ms
44
Uztelecom       | Tashkent, UZ (10G)        | 756 Mbits/sec   | 841 Mbits/sec   | 244 ms
45
Leaseweb        | Singapore, SG (10G)       | 570 Mbits/sec   | 938 Mbits/sec   | 230 ms
46
Clouvider       | Los Angeles, CA, US (10G) | 7.43 Gbits/sec  | 6.38 Gbits/sec  | 0.301 ms
47
Leaseweb        | NYC, NY, US (10G)         | 2.68 Gbits/sec  | 4.35 Gbits/sec  | 57.1 ms
48
Edgoo           | Sao Paulo, BR (1G)        | 706 Mbits/sec   | 1.17 Gbits/sec  | 171 ms
49

50
Geekbench 6 BenchMark Test:
51
---------------------------------
52
Test            | Value
53
                |
54
Single Core     | 3226
55
Multi Core      | 17957
56
Full Test       | https://browser.geekbench.com/v6/cpu/11830731
57

58
YABS completed in 7 min 41 sec

GeekBench5#

1
Geekbench 5 测试结果
2

3
系统信息
4
  Operating System              Debian GNU/Linux 12 (bookworm)
5
  Kernel                        Linux 6.8.4-2-pve x86_64
6
  Model                         Supermicro AS -3015MR-H8TNR
7
  Motherboard                   Supermicro H13SRD-F
8
  BIOS                          American Megatrends International, LLC. 1.4
9

10
处理器信息
11
  Name                          AMD Ryzen 9 9950X 16-Core Processor
12
  Topology                      1 Processor, 16 Cores, 32 Threads
13
  Identifier                    AuthenticAMD Family 26 Model 68 Stepping 0
14
  Base Frequency                8.18 GHz
15
  L1 Instruction Cache          32.0 KB x 16
16
  L1 Data Cache                 48.0 KB x 16
17
  L2 Cache                      1.00 MB x 16
18
  L3 Cache                      32.0 MB x 2
19

20
内存信息
21
  Size                          123 GB
22

23
单核测试分数：2412
24
多核测试分数：22261
25
详细结果链接：https://browser.geekbench.com/v5/cpu/23519732
26
可供参考链接：https://browser.geekbench.com/search?k=v5_cpu&q=AMD%20Ryzen%209%209950X

Bench#

1
-------------------- A Bench.sh Script By Teddysun -------------------
2
 Version            : v2024-11-11
3
 Usage              : wget -qO- bench.sh | bash
4
----------------------------------------------------------------------
5
 CPU Model          : AMD Ryzen 9 9950X 16-Core Processor
6
 CPU Cores          : 32 @ 600.000 MHz
7
 CPU Cache          : 1024 KB
8
 AES-NI             : ✓ Enabled
9
 VM-x/AMD-V         : ✓ Enabled
10
 Total Disk         : 102.9 GB (5.3 GB Used)
11
 Total Mem          : 123.4 GB (3.0 GB Used)
12
 Total Swap         : 8.0 GB (0 Used)
13
 System uptime      : 0 days, 3 hour 1 min
14
 Load average       : 0.00, 0.31, 5.97
15
 OS                 : Debian GNU/Linux 12
16
 Arch               : x86_64 (64 Bit)
17
 Kernel             : 6.8.4-2-pve
18
 TCP CC             : cubic
19
 Virtualization     : Dedicated
20
 IPv4/IPv6          : ✓ Online / ✗ Offline
21
 Organization       : AS26042 FiberState, LLC
22
 Location           : Los Angeles / US
23
 Region             : California
24
----------------------------------------------------------------------
25
 I/O Speed(1st run) : 2.8 GB/s
26
 I/O Speed(2nd run) : 2.6 GB/s
27
 I/O Speed(3rd run) : 3.0 GB/s
28
 I/O Speed(average) : 2867.2 MB/s
29
----------------------------------------------------------------------
30
 Node Name        Upload Speed      Download Speed      Latency
31
 Speedtest.net    6367.26 Mbps      9315.68 Mbps        13.91 ms
32
 Paris, FR        708.10 Mbps       7895.82 Mbps        129.36 ms
33
 Amsterdam, NL    600.73 Mbps       3283.61 Mbps        126.40 ms
34
 Shanghai, CN     239.02 Mbps       6095.52 Mbps        195.49 ms
35
 Singapore, SG    330.32 Mbps       6204.44 Mbps        169.75 ms
36
 Tokyo, JP        734.62 Mbps       8446.52 Mbps        118.03 ms
37
----------------------------------------------------------------------
38
 Finished in        : 3 min 17 sec
39
 Timestamp          : 2025-05-05 19:38:20 PDT
40
----------------------------------------------------------------------

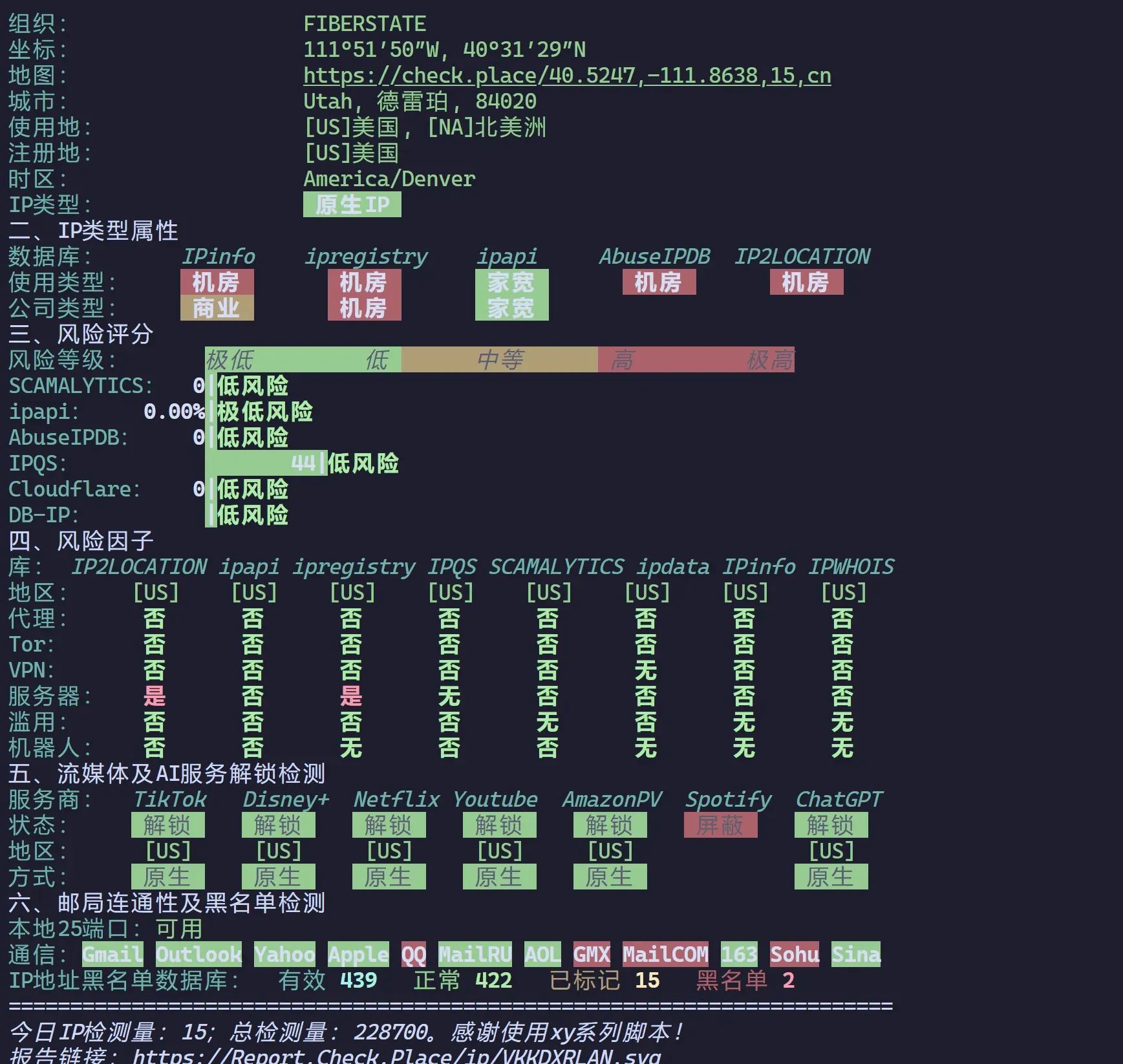

IP解锁#

1
============[ Multination ]============
2
 Dazn:                                  Yes (Region: US)
3
 Disney+:                               Yes (Region: US)
4
 Netflix:                               Yes (Region: US)
5
 YouTube Premium:                       Yes (Region: US)
6
 Amazon Prime Video:                    Yes (Region: US)
7
 TVBAnywhere+:                          Yes
8
 Spotify Registration:                  No
9
 OneTrust Region:                       US [Utah]
10
 iQyi Oversea Region:                   US
11
 Bing Region:                           US
12
 Apple Region:                          US
13
 YouTube CDN:                           Los Angeles, CA
14
 Netflix Preferred CDN:                 Los Angeles, CA
15
 ChatGPT:                               Yes
16
 Google Gemini:                         Yes (Region: USA)
17
 Claude:                                No
18
 Wikipedia Editability:                 Yes
19
 Google Play Store:                     United States
20
 Google Search CAPTCHA Free:            Yes
21
 Steam Currency:                        USD
22
 ---Forum---
23
 Reddit:                                Yes
24
 ---Game---
25
 SD Gundam G Generation Eternal:        Yes
26
=======================================
27
===========[ North America ]===========
28
 Paramount+:                            Failed (Error: 406)
29
 Discovery+:                            Yes (Region: US)
30
 Acorn TV:                              Yes
31
 BritBox:                               Yes
32
 SonyLiv:                               Yes (Region: US)
33
 NBA TV:                                Yes
34
 TLC GO:                                Yes (Region: US)
35
 Shudder:                               Yes
36
 Fubo TV:                               Yes (Region:US)
37
 Tubi TV:                               Yes
38
 Pluto TV:                              Yes
39
 KOCOWA:                                Yes
40
 AMC+:                                  Yes (Region: USA)
41
 MathsSpot Roblox:                      Failed (Error: FailureUnauthorized)
42
 ---US---
43
 FOX:                                   Yes
44
 Hulu:                                  Yes
45
 NFL+:                                  Yes
46
 ESPN+:[Sponsored by Jam]               Yes
47
 MGM+:                                  No
48
 Starz:                                 Failed (Error: PAGE ERROR)
49
 Philo:                                 Yes
50
 FXNOW:                                 Yes
51
 HBO Max:                               Yes (Region: US)
52
 Crackle:                               Yes
53
 CW TV:                                 Yes
54
 A&E TV:                                Yes
55
 NBC TV:                                Yes
56
 Sling TV:                              Yes
57
 encoreTVB:                             Yes
58
 Peacock TV:                            Yes
59
 Popcornflix:                           Failed (Network Connection)
60
 Crunchyroll:                           Yes
61
 Directv Stream:                        Yes
62
 Meta AI:                               No
63
 ---CA---
64
 HotStar:                               No (Discontinued in the US)
65
 CBC Gem:                               No
66
 Crave:                                 No
67
=======================================

UnixBench#

1
------------------------------------------------------------------------
2
BenchMark Run: Mon May 05 2025 18:03:56 - 18:32:15
3
32 CPUs in system; running 1 parallel copy of tests
4

5
Dhrystone 2 using register variables      103429451.8 lps   (10.0 s, 7 samples)
6
Double-Precision Whetstone                    13481.4 MWIPS (10.0 s, 7 samples)
7
Execl Throughput                              10210.7 lps   (30.0 s, 2 samples)
8
File Copy 1024 bufsize 2000 maxblocks       3310260.9 KBps  (30.0 s, 2 samples)
9
File Copy 256 bufsize 500 maxblocks          870510.2 KBps  (30.0 s, 2 samples)
10
File Copy 4096 bufsize 8000 maxblocks      11187945.8 KBps  (30.0 s, 2 samples)
11
Pipe Throughput                             5095741.9 lps   (10.0 s, 7 samples)
12
Pipe-based Context Switching                 450221.2 lps   (10.0 s, 7 samples)
13
Process Creation                              13723.3 lps   (30.0 s, 2 samples)
14
Shell Scripts (1 concurrent)                  28986.2 lpm   (60.0 s, 2 samples)
15
Shell Scripts (8 concurrent)                  21790.9 lpm   (60.0 s, 2 samples)
16
System Call Overhead                        4144112.5 lps   (10.0 s, 7 samples)
17

18
System BenchMarks Index Values               BASELINE       RESULT    INDEX
19
Dhrystone 2 using register variables         116700.0  103429451.8   8862.8
20
Double-Precision Whetstone                       55.0      13481.4   2451.2
21
Execl Throughput                                 43.0      10210.7   2374.6
22
File Copy 1024 bufsize 2000 maxblocks          3960.0    3310260.9   8359.2
23
File Copy 256 bufsize 500 maxblocks            1655.0     870510.2   5259.9
24
File Copy 4096 bufsize 8000 maxblocks          5800.0   11187945.8  19289.6
25
Pipe Throughput                               12440.0    5095741.9   4096.3
26
Pipe-based Context Switching                   4000.0     450221.2   1125.6
27
Process Creation                                126.0      13723.3   1089.1
28
Shell Scripts (1 concurrent)                     42.4      28986.2   6836.4
29
Shell Scripts (8 concurrent)                      6.0      21790.9  36318.1
30
System Call Overhead                          15000.0    4144112.5   2762.7
31
                                                                   ========
32
System BenchMarks Index Score                                        4803.0
33

34
------------------------------------------------------------------------
35
BenchMark Run: Mon May 05 2025 18:32:15 - 19:00:14
36
32 CPUs in system; running 32 parallel copies of tests
37

38
Dhrystone 2 using register variables     1656117699.4 lps   (10.0 s, 7 samples)
39
Double-Precision Whetstone                   350666.2 MWIPS (10.1 s, 7 samples)
40
Execl Throughput                              67033.2 lps   (30.0 s, 2 samples)
41
File Copy 1024 bufsize 2000 maxblocks      30947432.9 KBps  (30.0 s, 2 samples)
42
File Copy 256 bufsize 500 maxblocks        15386597.2 KBps  (30.0 s, 2 samples)
43
File Copy 4096 bufsize 8000 maxblocks      14988780.5 KBps  (30.0 s, 2 samples)
44
Pipe Throughput                            98901506.3 lps   (10.0 s, 7 samples)
45
Pipe-based Context Switching                8988285.5 lps   (10.0 s, 7 samples)
46
Process Creation                             167558.3 lps   (30.0 s, 2 samples)
47
Shell Scripts (1 concurrent)                 291668.4 lpm   (60.0 s, 2 samples)
48
Shell Scripts (8 concurrent)                  38147.6 lpm   (60.0 s, 2 samples)
49
System Call Overhead                       95558930.9 lps   (10.0 s, 7 samples)
50

51
System BenchMarks Index Values               BASELINE       RESULT    INDEX
52
Dhrystone 2 using register variables         116700.0 1656117699.4 141912.4
53
Double-Precision Whetstone                       55.0     350666.2  63757.5
54
Execl Throughput                                 43.0      67033.2  15589.1
55
File Copy 1024 bufsize 2000 maxblocks          3960.0   30947432.9  78150.1
56
File Copy 256 bufsize 500 maxblocks            1655.0   15386597.2  92970.4
57
File Copy 4096 bufsize 8000 maxblocks          5800.0   14988780.5  25842.7
58
Pipe Throughput                               12440.0   98901506.3  79502.8
59
Pipe-based Context Switching                   4000.0    8988285.5  22470.7
60
Process Creation                                126.0     167558.3  13298.3
61
Shell Scripts (1 concurrent)                     42.4     291668.4  68789.7
62
Shell Scripts (8 concurrent)                      6.0      38147.6  63579.3
63
System Call Overhead                          15000.0   95558930.9  63706.0
64
                                                                   ========
65
System BenchMarks Index Score                                       48638.9

PassMark PerformanceTest Linux#

1
AMD Ryzen 9 9950X 16-Core Processor (x86_64)
2
16 cores @ 8180 MHz  |  123.4 GiB RAM
3
Number of Processes: 32  |  Test Iterations: 1  |  Test Duration: Medium
4
--------------------------------------------------------------------------
5
CPU Mark:                          57648
6
  Integer Math                     246002 Million Operations/s
7
  Floating Point Math              142440 Million Operations/s
8
  Prime Numbers                    256 Million Primes/s
9
  Sorting                          70769 Thousand Strings/s
10
  Encryption                       44488 MB/s
11
  Compression                      766920 KB/s
12
  CPU Single Threaded              4290 Million Operations/s
13
  Physics                          2662 Frames/s
14
  Extended Instructions (SSE)      55570 Million Matrices/s
15

16
Memory Mark:                       3324
17
  Database Operations              13948 Thousand Operations/s
18
  Memory Read Cached               40422 MB/s
19
  Memory Read Uncached             38967 MB/s
20
  Memory Write                     20812 MB/s
21
  Available RAM                    119075 Megabytes
22
  Memory Latency                   61 Nanoseconds
23
  Memory Threaded                  51337 MB/s
24
--------------------------------------------------------------------------

融合怪Go#

1
--------------------------------------系统基础信息--------------------------------------
2
 CPU 型号            : AMD Ryzen 9 9950X 16-Core Processor @5243.427 MHz
3
 CPU 数量            : 32 Physical CPU(s)
4
 CPU 缓存            : L1: 1 MB / L2: 16 MB / L3: 64 MB
5
 GPU 型号            : ASPEED Graphics Family
6
 AES-NI              : ✔️ Enabled
7
 VM-x/AMD-V/Hyper-V  : ❌ Disabled
8
 内存                : 3.10 GB / 123.42 GB
9
 气球驱动            : ❌ Undetected
10
 内核页合并          : ❌ Undetected
11
 虚拟内存 Swap       : 0.00 MB / 8.00 GB
12
 硬盘空间            : 5.51 GB / 93.93 GB
13
 启动盘路径          : /dev/mapper/pve-root
14
 系统                : debian 12.5 [x86_64]
15
 内核                : 6.8.4-2-pve
16
 系统在线时间        : 0 days, 03 hours, 31 minutes
17
 时区                : PDT
18
 负载                : 0.00 / 0.00 / 0.85
19
 虚拟化架构          : Dedicated (No visible signage)
20
 NAT类型             : Full Cone
21
 TCP加速方式         : cubic
22
 IPV4 ASN            : AS26042 Fiberstate, LLC
23
 IPV4 Location       : Draper / Utah / United States
24
 IPV4 Active IPs     : 94/256 (subnet /24) 471552/16777216 (prefix /8)
25
--------------------------------CPU测试-通过sysbench测试--------------------------------
26
1 线程测试(单核)得分:   6432.00
27
32 线程测试(多核)得分:  107656.49
28
--------------------------------内存测试-通过sysbench测试---------------------------------
29
单线程顺序写速度: 37806.64 MB/s(39.64K IOPS, 5s)
30
单线程顺序读速度: 97162.82 MB/s(101.88K IOPS, 5s)
31
-----------------------------------硬盘测试-通过fio测试-----------------------------------
32
测试路径      块大小   读测试(IOPS)            写测试(IOPS)            总和(IOPS)
33
/root         4k       1.62 GB/s(406.2k)       1.63 GB/s(407.3k)       3.25 GB/s(813.5k)
34
/root         64k      1.17 GB/s(18.3k)        1.17 GB/s(18.4k)        2.34 GB/s(36.6k)
35
/root         512k     1.47 GB/s(2876)         1.55 GB/s(3029)         3.02 GB/s(5905)
36
/root         1m       1.65 GB/s(1608)         1.76 GB/s(1715)         3.40 GB/s(3323)
37
-------------------------------------御三家流媒体解锁-------------------------------------
38
----------------Netflix-----------------
39
[IPV4]
40
您的出口IP完整解锁Netflix，支持非自制剧的观看
41
NF所识别的IP地域信息：美国
42
[IPV6]
43
您的网络可能没有正常配置IPv6，或者没有IPv6网络接入
44
----------------Youtube-----------------
45
[IPV4]
46
连接方式: Youtube Video Server
47
视频缓存节点地域: NUQ(NUQ04S38)
48
[IPV6]
49
Youtube在您的出口IP所在的国家不提供服务
50
---------------DisneyPlus---------------
51
[IPV4]
52
当前IPv4出口所在地区即将开通DisneyPlus
53
[IPV6]
54
DisneyPlus在您的出口IP所在的国家不提供服务
55
-------------------------------------跨国流媒体解锁--------------------------------------
56
IPV4:
57
============[ 跨国平台 ]============
58
Apple                     YES (Region: USA)
59
BingSearch                YES (Region: US)
60
Claude                    YES
61
Dazn                      YES (Region: US)
62
Disney+                   YES (Region: US)
63
Gemini                    YES (Region: USA)
64
GoogleSearch              YES
65
Google Play Store         YES (Region: US)
66
IQiYi                     YES (Region: US)
67
Instagram Licensed Audio  YES
68
KOCOWA                    YES
69
MetaAI                    Unknown: get www.meta.ai failed with code: 200
70
Netflix                   YES (Region: US)
71
Netflix CDN               US
72
OneTrust                  YES (Region: US UTAH)
73
ChatGPT                   YES (Region: US)
74
Paramount+                YES
75
Amazon Prime Video        YES (Region: US)
76
Reddit                    YES
77
SonyLiv                   YES (Region: US)
78
Sora                      YES (Region: US)
79
Spotify Registration      NO
80
Steam Store               YES (Community Available) (Region: US)
81
TVBAnywhere+              YES (Region: US)
82
TikTok                    YES (Region: US)
83
Viu.com                   YES
84
Wikipedia Editability     YES
85
YouTube Region            YES (Region: US)
86
YouTube CDN               NUQ
87
--------------------------------------IP质量检测--------------------------------------
88
以下为各数据库编号，输出结果后将自带数据库来源对应的编号
89
ipinfo数据库  [0] | scamalytics数据库 [1] | virustotal数据库   [2] | abuseipdb数据库   [3] | ip2location数据库    [4]
90
ip-api数据库  [5] | ipwhois数据库     [6] | ipregistry数据库   [7] | ipdata数据库      [8] | db-ip数据库          [9]
91
ipapiis数据库 [A] | ipapicom数据库    [B] | bigdatacloud数据库 [C] | cheervision数据库 [D] | ipqualityscore数据库 [E]
92
IPV4:
93
安全得分:
94
声誉(越高越好): 0 [2]
95
信任得分(越高越好): 9 [8]
96
VPN得分(越低越好): 97 [8]
97
代理得分(越低越好): 100 [8]
98
社区投票-无害: 0 [2]
99
社区投票-恶意: 0 [2]
100
威胁得分(越低越好): 77 [8]
101
欺诈得分(越低越好): 0 [1 E]
102
滥用得分(越低越好): 0 [3]
103
ASN滥用得分(越低越好): 0.0031 (Low) [A]
104
公司滥用得分(越低越好): 0 (Very Low) [A]
105
威胁级别: low [9]
106
黑名单记录统计:(有多少黑名单网站有记录):
107
无害记录数: 0 [2]  恶意记录数: 0 [2]  可疑记录数: 0 [2]  无记录数: 94 [2]
108
安全信息:
109
使用类型: DataCenter/WebHosting/Transit [3] consumer [9] business [8] isp [A] unknown [C] hosting [0 7]
110
公司类型: isp [7 A] business [0]
111
是否云提供商: Yes [7 D]
112
是否数据中心: No [0 5 6 8 A C] Yes [1]
113
是否移动设备: No [5 A C] Yes [E]
114
是否代理: No [0 1 4 5 6 7 8 9 A C D E]
115
是否VPN: No [0 1 6 7 A C D E]
116
是否TorExit: No [1 7 D]
117
是否Tor出口: No [1 7 D]
118
是否网络爬虫: No [9 A E]
119
是否匿名: No [1 6 7 8 D]
120
是否攻击者: No [7 8 D]
121
是否滥用者: No [7 8 A C D E]
122
是否威胁: No [7 8 C D]
123
是否中继: No [0 7 8 C D]
124
是否Bogon: No [7 8 A C D]
125
是否机器人: No [E]
126
DNS-黑名单: 313(Total_Check) 0(Clean) 9(Blacklisted) 23(Other)
127
--------------------------------------邮件端口检测--------------------------------------
128
Platform  SMTP  SMTPS POP3  POP3S IMAP  IMAPS
129
LocalPort ✘     ✔     ✔     ✔     ✔     ✔
130
QQ        ✔     ✔     ✔     ✘     ✔     ✘
131
163       ✔     ✔     ✔     ✘     ✔     ✘
132
Sohu      ✔     ✔     ✔     ✘     ✔     ✘
133
Yandex    ✔     ✔     ✔     ✘     ✔     ✘
134
Gmail     ✔     ✔     ✘     ✘     ✘     ✘
135
Outlook   ✔     ✘     ✔     ✘     ✔     ✘
136
Office365 ✔     ✘     ✔     ✘     ✔     ✘
137
Yahoo     ✔     ✔     ✘     ✘     ✘     ✘
138
MailCOM   ✔     ✔     ✔     ✘     ✔     ✘
139
MailRU    ✔     ✔     ✘     ✘     ✔     ✘
140
AOL       ✔     ✔     ✘     ✘     ✘     ✘
141
GMX       ✔     ✘     ✔     ✘     ✔     ✘
142
Sina      ✔     ✔     ✔     ✘     ✔     ✘
143
Apple     ✘     ✔     ✘     ✘     ✘     ✘
144
FastMail  ✘     ✔     ✘     ✘     ✘     ✘
145
ProtonMail✘     ✘     ✘     ✘     ✘     ✘
146
MXRoute   ✔     ✘     ✔     ✘     ✔     ✘
147
Namecrane ✔     ✔     ✔     ✘     ✔     ✘
148
XYAMail   ✘     ✘     ✘     ✘     ✘     ✘
149
ZohoMail  ✘     ✔     ✘     ✘     ✘     ✘
150
Inbox_eu  ✔     ✔     ✔     ✘     ✘     ✘
151
Free_fr   ✘     ✔     ✔     ✘     ✔     ✘
152
-------------------------------------三网回程线路检测-------------------------------------
153
北京移动v4 221.179.155.161          移动CMI    [普通线路]
154
上海电信v4 202.96.209.133           电信163    [普通线路]
155
上海移动v4 211.136.112.200          移动CMI    [普通线路]
156
广州电信v4 58.60.188.222            电信163    [普通线路]
157
成都电信v4 61.139.2.69              电信163    [普通线路]
158
北京电信v6 2400:89c0:1053:3::69     检测不到回程路由节点的IPV6地址
159
北京联通v6 2400:89c0:1013:3::54     检测不到回程路由节点的IPV6地址
160
北京移动v6 2409:8c00:8421:1303::55  检测不到回程路由节点的IPV6地址
161
上海电信v6 240e:e1:aa00:4000::24    检测不到回程路由节点的IPV6地址
162
上海联通v6 2408:80f1:21:5003::a     检测不到回程路由节点的IPV6地址
163
上海移动v6 2409:8c1e:75b0:3003::26  检测不到回程路由节点的IPV6地址
164
广州电信v6 240e:97c:2f:3000::44     检测不到回程路由节点的IP地址
165
广州联通v6 2408:8756:f50:1001::c    检测不到回程路由节点的IP地址
166
广州移动v6 2409:8c54:871:1001::12   检测不到回程路由节点的IPV6地址
167
-------------------------------------三网回程路由检测-------------------------------------
168
[NextTrace API] preferred API IP - 45.88.193.28 - 9.67ms - 🐠 (Relay) → Misaka.LAX
169
广州电信 - ICMP v4 - traceroute to 58.60.188.222, 30 hops max, 52 byte packets
170
0.35 ms      AS26042                       美国, fiberstate.com
171
1.19 ms      AS3257                        美国, 加利福尼亚, 洛杉矶, gtt.net
172
298.11 ms    AS3257                        美国, gtt.net
173
206.94 ms    AS4134     [CHINANET-BB]      中国, 广东, 广州, www.chinatelecom.com.cn  电信
174
156.72 ms    AS4134     [CHINANET-BB]      中国, 广东, 广州, www.chinatelecom.com.cn  电信
175
164.09 ms    AS4134     [CHINANET-BB]      中国, 广东, 广州, www.chinatelecom.com.cn  电信
176
212.41 ms    AS134774   [CHINANET-GD]      中国, 广东, 深圳, chinatelecom.cn  电信
177
*
178
161.09 ms    AS4134                        中国, 广东, 深圳, www.chinatelecom.com.cn  电信
179
广州联通 - ICMP v4 - traceroute to 210.21.196.6, 30 hops max, 52 byte packets
180
0.50 ms      AS26042                       美国, fiberstate.com
181
1.28 ms      AS3257                        美国, 加利福尼亚, 洛杉矶, gtt.net
182
7.93 ms      AS3257     [GTT-BACKBONE]     美国, 加利福尼亚, 圣何塞, gtt.net
183
147.41 ms    AS3257                        美国, 加利福尼亚, 圣何塞, gtt.net
184
272.57 ms    AS4837     [CU169-BACKBONE]   中国, 上海, chinaunicom.cn  联通
185
184.62 ms    AS4837     [CU169-BACKBONE]   中国, 上海, chinaunicom.cn  联通
186
*
187
*
188
186.15 ms    AS17816    [APNIC-AP]         中国, 广东省, 广州市, chinaunicom.cn
189
189.77 ms    AS17623    [APNIC-AP]         中国, 广东, 深圳, chinaunicom.cn  联通
190
185.94 ms    AS17623                       中国, 广东, 深圳, chinaunicom.cn  联通
191
广州移动 - ICMP v4 - traceroute to 120.196.165.24, 30 hops max, 52 byte packets
192
0.32 ms      AS26042                       美国, fiberstate.com
193
0.64 ms      AS6453     [CCBB-LVW]         美国, 加利福尼亚州, 洛杉矶, tatacommunications.com
194
*
195
0.75 ms      AS6453                        美国, 加利福尼亚, 洛杉矶, tatacommunications.com
196
0.62 ms      AS58453    [CMI-INT]          美国, 加利福尼亚, 洛杉矶, cmi.chinamobile.com  移动
197
176.44 ms    AS58453    [CMI-INT]          中国, 广东, 广州, cmi.chinamobile.com  移动
198
179.95 ms    AS9808     [CMNET]            中国, 广东, 广州, chinamobileltd.com  移动
199
183.28 ms    AS9808     [CMNET]            中国, 广东, 广州, chinamobileltd.com  移动
200
*
201
174.41 ms    AS9808     [CMNET]            中国, 广东, 广州, chinamobileltd.com  移动
202
*
203
192.23 ms    AS56040    [APNIC-AP]         中国, 广东, 深圳, gd.10086.cn  移动
204
--------------------------------------就近节点测速--------------------------------------
205
位置            上传速度        下载速度        延迟            丢包率
206
Speedtest.net   6372.47 Mbps    9397.08 Mbps    13.87 ms        Not available.
207
洛杉矶          7938.97 Mbps    6097.03 Mbps    0.35 ms         0.0%
208
日本东京        196.36 Mbps     1746.82 Mbps    115.46 ms       1.0%
209
联通上海5G      532.89 Mbps     5956.26 Mbps    171.02 ms       0.0%
210
电信Suzhou5G    515.19 Mbps     1602.58 Mbps    137.48 ms       Not available.
211
移动Chengdu     231.40 Mbps     4872.45 Mbps    205.09 ms       Not available.
212
----------------------------------------------------------------------------------
213
花费          : 8 分 47 秒
214
时间          : Mon May 5 20:13:22 PDT 2025
215
----------------------------------------------------------------------------------
